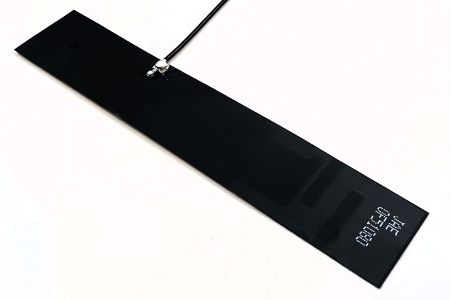

AP02ML0630410C0

一般用途 LTE / 5G (Sub-6 GHz) 对应 698 to 960 MHz / 1.45 to 6 GHz频段 FPC天线

Click here to download the materials.

For other materials, please contact us.

特征

■ Extensive frequency range
Supports frequency ranges from 698 MHz to 960 MHz and 1.45 GHz to 6 GHz.
■ Design flexibility
Features a double-sided tape attachment for increased flexibility in antenna placement within devices.
■ High radiation performance
Achieves over 40% (*) efficiency with near-omnidirectional radiation.
■ Robustness
Minimal influence from nearby metallic objects, similar to our AN01/AN02 series antennas.
(*) Performance data is based on attachment to a 2mm thick ABS board, including cable losses.

用途

CPE (Customer Premises Equipment) such as routers and gateways
Smart meter
Asset tracker、etc

一般规格

Item	Specification
Part Number	AP02ML0630410C0
Frequency Range	698 to 960 MHz	1.45 to 1.71 GHz	1.71 to 1.69 GHz	3.3 to 6 GHz
VSWR (*)	＜ 3.0	＜ 5.5	＜ 4.0	＜ 4.0
Radiation Efficiency (*)	＞ 60％	＞ 40％	＞ 60％	＞ 50％
Impedance	50 Ω
Size	w 100 × d 20 × h 0.12 mm 　 *Including adhesive thickness and excluding release liner thickness
Operating Temperature Range	-40℃ to +85℃
Type	FPC antenna with microcoax cable
Cable	f1.13 mm, Length 200 mm
Connector	U.FL / MHF1 Equivalent
Supported Standards	-

* Performance data is based on attachment to a 2 mm thick ABS board, including cable losses.

技术数据

We have prepared the following materials.
Please contact us for more information.

Specification document
Drawing
