AP02ML2727493C0

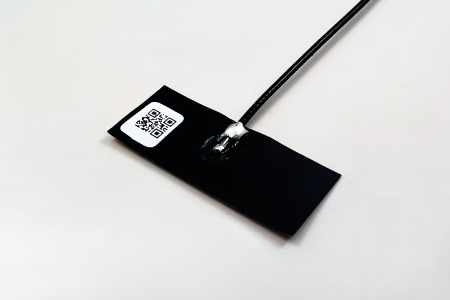

一般用途 2.4, 5 & 6 GHz频段FPC天线

Click here to download the materials.

For other materials, please contact us.

特征

■ Extensive frequency range
Supports frequency ranges from 2.4 to 2.5 GHz, 5.15 to 5.85 GHz, and 5.925 to 7.125 GHz.
■ Design flexibility
Features a double-sided tape attachment for increased flexibility in antenna placement within devices.
■ High radiation performance
Achieves over 50% (*) efficiency with near-omnidirectional radiation.
■ Robustness
Minimal influence from nearby metallic objects, similar to our AN01/AN02 series antennas. 　
(*) Performance data is based on attachment to a 2mm thick ABS board, including cable losses.

用途

Wi-Fi router
Gaming console
Smart home devices, etc.

一般规格

Item	Specification
Part Number	AP02ML2727493C0
Frequency Range	2.4 to 2.5 GHz	5.15 to 5.85 GHz	5.925 to 7.125 GHz
VSWR (*)	＜ 3.0
Radiation Efficiency (*)	＞ 70 ％	＞ 60 ％	＞ 50 ％
Impedance	50 Ω
Size	w 30 × d 13 × h 0.12 mm 　 *Including adhesive thickness and excluding release liner thickness
Operating Temperature Range	-40℃ to +85℃
Type	FPC antenna with microcoax cable
Cable	f1.13 mm, Length 200 mm
Connector	U.FL / MHF1 Equivalent
Supported Standards	-

* Performance data is based on attachment to a 2mm thick ABS board, including cable losses.

技术数据

We have prepared the following materials.
Please contact us for more information.

Specification document
Drawing
