AP02ML1630411C0

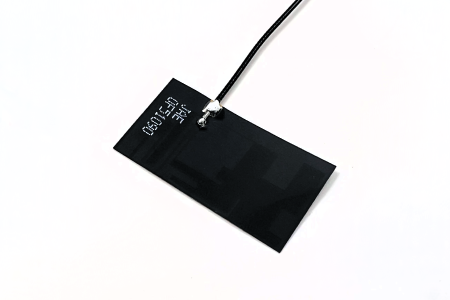

一般用途 LTE / 5G (Sub-6 GHz) 对应 1.71 to 6 GHz频段 FPC天线
特征
■ Extensive frequency rangeSupports frequency ranges from 1.71 GHz to 6 GHz.
■ Design flexibility
Features a double-sided tape attachment for increased flexibility in antenna placement within devices.
■ High radiation performance
Achieves over 50 % (*) efficiency with near-omnidirectional radiation.
■ Robustness
Minimal influence from nearby metallic objects, similar to our AN01/AN02 series antennas.
(*) Performance data is based on attachment to a 2mm thick ABS board, including cable losses.
用途
- CPE (Customer Premises Equipment) such as routers and gateways, etc.
一般规格
| Item | Specification | |||
|---|---|---|---|---|
| Part Number | AP02ML1630411C0 | |||
| Frequency Range | 1.71 to 2.69 GHz | 3.3 to 6 GHz | ||
| VSWR (*) | ＜ 3.5 | |||
| Radiation Efficiency (*) | ＞ 50％ | |||
| Impedance | 50 Ω | |||
| Size | w 38 x d 20 x h 0.12 mm *Including adhesive thickness and excluding release liner thickness |
|||
| Operating Temperature Range | -40℃ to +85℃ | |||
| Type | FPC antenna with microcoax cable | |||
| Cable | f1.13 mm, Length 200 mm | |||
| Connector | U.FL / MHF1 Equivalent | |||
| Supported Standards | - | |||
技术数据
We have prepared the following materials.Please contact us for more information.
- Specification document
- Drawing
